We use fiberglass high tension property , multi-layer, multi-angle to wind the dome. FRP storage tanks can store, transport organic and inorganic solvent, chemical and electrochemical corrosive materials. It can meet the requirement of the transfer, transportation of non-electrolyte fluid. It can remove the static. It resists many kinds of acid , alkli , salt and organic solvent.

Product Characteristics
Excellent mechanical and physical properties.
Corrosion resistance and long life.
Agility in design , good structure in tank wall.
Long life , low cost for maintenance.
Product Type
Within the range of the normal pressure minus 0.05Mpa, filament product has a diameter of 50-4000mm, length of 2000-12000mm. The cubage is 1-120m3. We can also produce according to customers requirement .

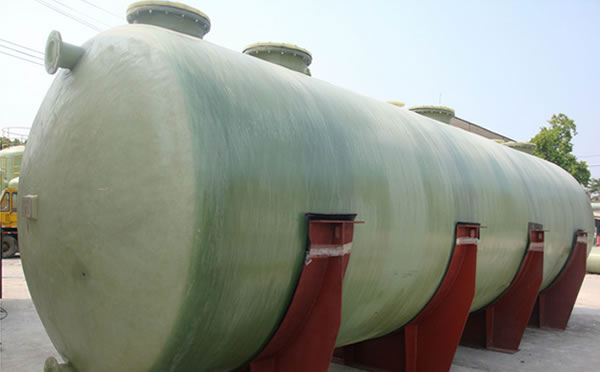

FRP tank is divided into vertical and horizontal mechanical winding FRP storage tank、transport tank、reaction tank、all kinds of chemical equipment,FRP vertical tank,horizontal storage tank,transport tank,vessel and large series vessels select epoxy furan resin、modified or polyester resin,phenolic resin as the adhesive,consisted of rich resin content inner liner,impervious layer、filament wound reinforced layer and surface protection layer.
Class:Vertical tank,horizontal tank，transport tank,reaction tank,large vessel

Structural Composite Vessel
The non-corrosive, cost-effective solution for commercial/industrial water treatment and storage. Structural Composite Pressure Vessels offers fiberglass construction for outstanding performance and durability in harsh chemcial environment. With capacities up to 1600 gallons and a veriety of options, we can tailor a vessel to meet your needs.

Features
100% composite fiberglass construction
Outstanding performance and durability in harsh chemical environments
Absolutely will not - and cannot - rust
Requires little or no maintenance
Capacities up to 2500 gallons
Factory-backed 5-year warranty
Materials of construction
Operating Parameters
Maximum operating pressure: 150psi
Maximum operating temperature: 150° F (flanged), 120° F ( threaded)
